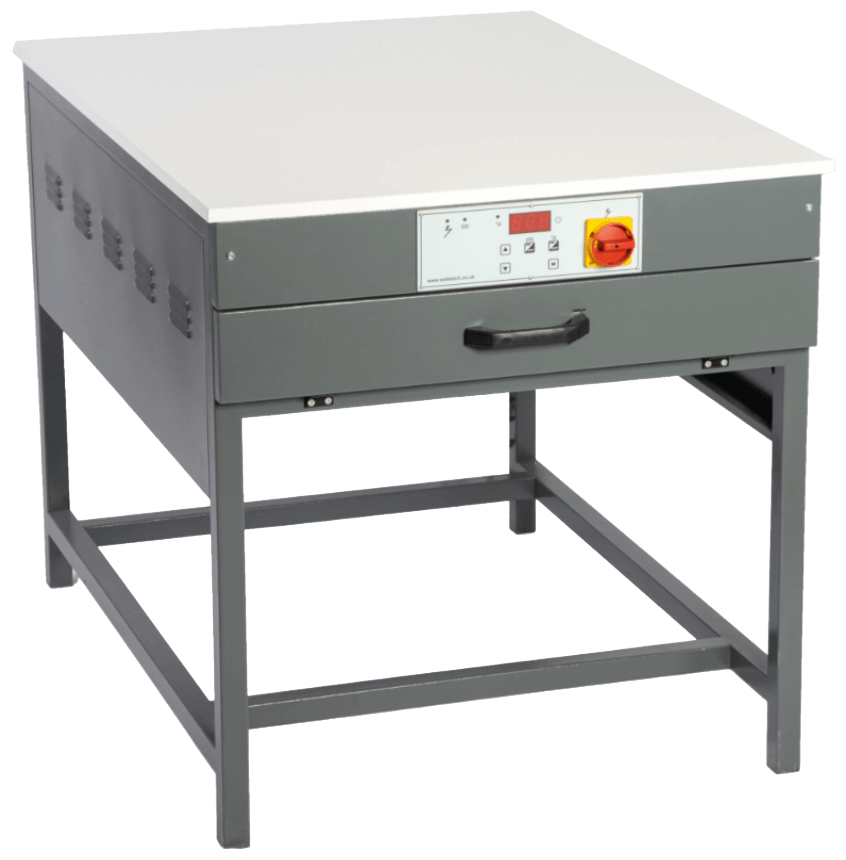

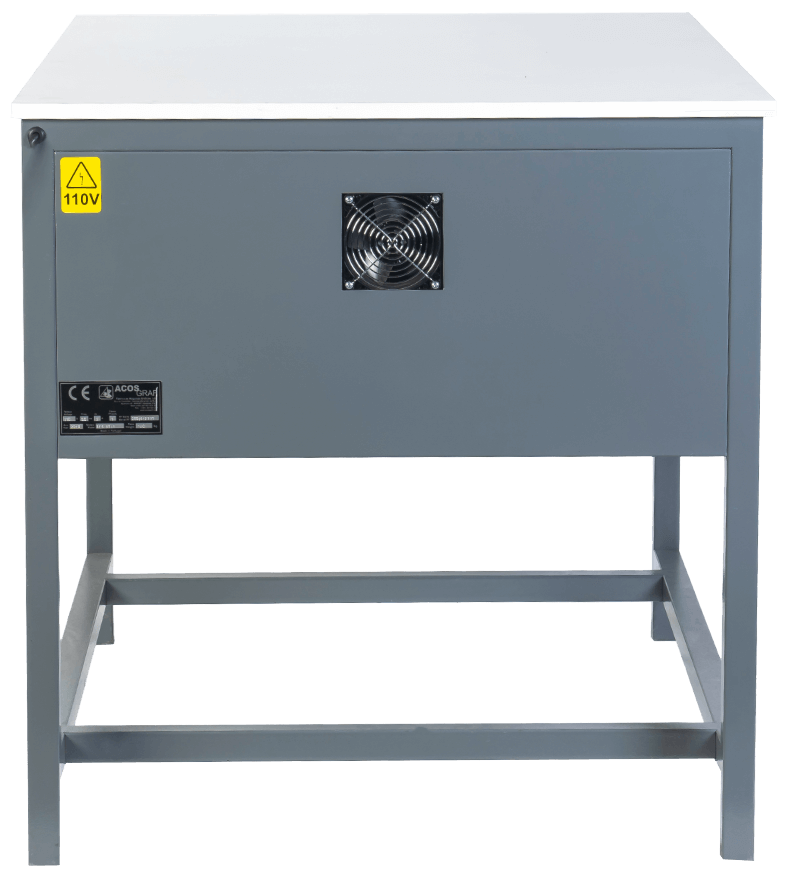

EXILE EXPOSE

Call us for quote.
Slow Ship Item 6-8 Weeks.

The EXPOSE is a UV-LED screen exposure system designed to compliment EXILE’s SCREENMAKER computer-to-screen system. Its compact design serves as both a high-quality exposure unit and a sturdy tabletop for your new CTS equipment. When a screen is finished printing, simply slide it into the enclosed tray, select one of 10 timed presets, and your screen is exposed to powerful UV-LEDs. The EXPOSE works with any screen emulsion, supplying quick and even curing of the emulsion.

BENEFITS:

• Built to seamlessly work with CTS systems
• Space-saving tabletop design
• Powerful and reliable UV-LEDs for fast and accurate exposure
• Supports frame sizes up to 27” x 37”

DIMENSIONS:

Expose – 37.6” x 51.2” x 41.4” (955 mm x 1300 mm x 1050 mm) | Weight: 242 lbs (110 kg)

EQUIPMENT SPECIFICATIONS:

• Model: EXPOSE CTS UV-LED Screen Exposure System
• Max Screen Size: 27 in x 37 in (70 cm x 90 cm)
• Exposure System: UV-LED Bulbs – Full Array, 9 Bulbs x 11 Rows, 390 nm Wavelength
• Power: 1.15 KW, AC 220-230 V, 110 V
• Environment: 50-70% Relative Humidity
• Temperature: 68°F – 86° F (20°C – 30°C)
• Weight: 242 lbs (110 kg)
• Dimensions: 37.6 in x 51.2 in x 41.4 in (955 mm x 1300 mm x 1050 mm)

RIP SPECIFICATIONS:

• Pure Photopolymer: 30 seconds to 1 minute
• Dual Cure: 2 to 3 minutes
• Diazo: 3 to 5 minutes
• *Speeds will vary depending on mesh counts and coating method.
