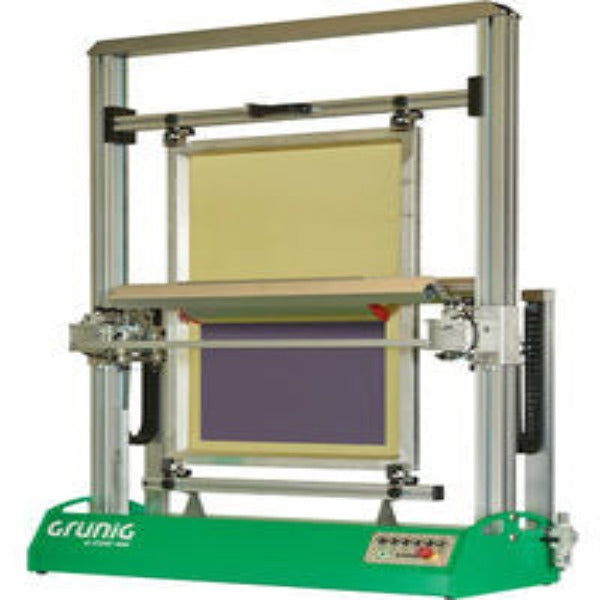

Grünig G-COAT 406 Coating Machine

SKU: G-Coat 406-Standard
$0.00
Shipping calculated at checkout.
Version

Grünig G-COAT 406 Coating Machine - Standard H39XW28 w/ Stand is a SLOW SHIP item, please email us for a timeline.

Slow Ship. Call us for quote.

The G-COAT 406 is a newly developed automatic coating machine that features Grünig’s “Plug & Coat” technology—simply unpack, setup, and start coating. It is an extremely compact bench-top model and boasts a durable, low maintenance construction.

The G-COAT 406 is available in two sizes: Standard, with support for screens up to 40″ H x 30″ W (1000 x 700 mm) and XL, capable of handling a max screen size of 55″ H x 40″ W (1400 x 1000 mm).

Coating is possible from one side, or both sides simultaneously using the included G-COAT 401 coating trough. All coating parameters can be quickly and easily programmed through the control panel. The coating process is extremely smooth thanks to special sliding guides and a toothed belt drive unit.

Features:

  • Frame profile height is adjustable within a range of 1 - 4″ (25 - 100 mm)
  • Tolerance of ± 1 µm ensures reproducibility
  • Compact, durable construction
  • Compact easy-mount stand available for floor installations
Requirements:
Power Supply
230 V (L + N + PE) or 110 V (L + N + PE), 50-60 Hz, 2.6 A or 5.2 A
Compressed Air Supply
58 psi, 21 f³/h (4 Bar, 0.6 m³/h)

Product Options:
Standard Version
Supports screens up to 40″ H x 30″ W (1000 x 700 mm)
XL Version
Supports screens up to 55″ H x 40″ W (1400 x 1000 mm)
Option U
Easy-mount stand for floor installation. Height of 21″ (540 mm)
