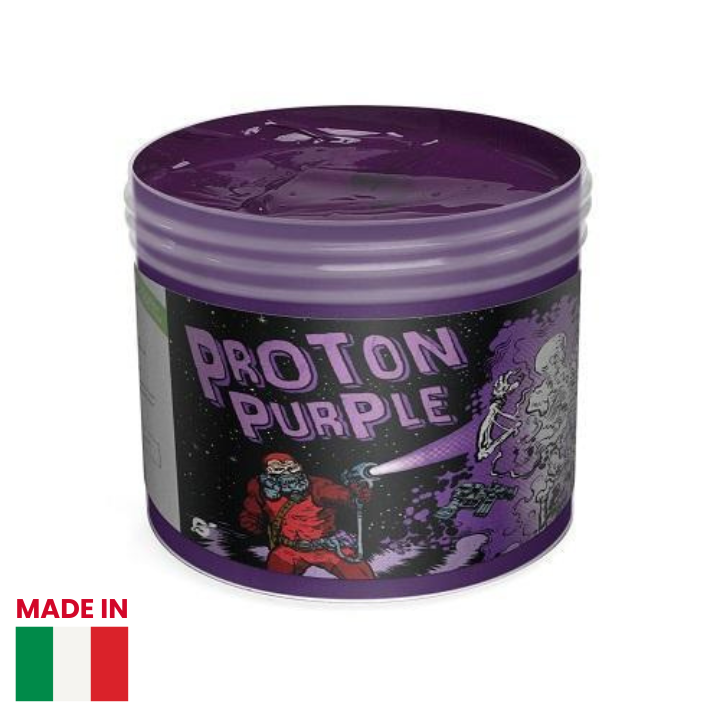

Green Galaxy Ink - Proton Purple HSA Water Based Ink

Original price $44.50 - Original price $44.50
Original price
$44.50
$44.50 - $44.50
Current price $44.50
SKU IKWB-PPURPLE-Q
Size: Quart

Approximate Pantone® Value: 7664U

"Vaporize evil with the powerful hue-ray. Easy for man, planet, and screen printer, Green Galaxy's Proton Purple ready for use water based ink is out of this world. Proton Purple is specially formulated to stay wet while printing, cover fabric, and wash extremely well. Not only is it easy to use but it feels amazing on the garment and can even be printed on un-coated paper for poster printing. After a day of printing, simply clean Proton Purple with water and scoop the left over ink back into the container where it will rejuvenate itself overnight.

General Information:

Ready-to-use water based ink for screen printing on fabrics. Can be printed on polyester or dye migrating fabrics with optional use of Green Galaxy™ Warp Drive low cure catalyst.

Mesh Guidelines:

Can be used with any mesh between 156-305.

Stencil/Emulsion Guidelines:

We recommend using either a water resistant emulsion like Green Galaxy™ CryoCoat and degreasing with Green Galaxy™ CryoPrep degreaser. For extended life and long runs it is recommend to post expose the screens or use an emulsion hardener like Ryonet Harden-X.

Mixing info:

This product can be mixed with other Green Galaxy™ HSA Water Based Inks.

Printing Instructions:

Load screen with plenty of ink. Flood screen prior to printing. Green Galaxy™ HSA Water Based Ink can be printed with a push or pull squeegee stroke. After printing, flood screen allowing ink to sit on top of image to avoid drying. If screen clogs or exhibits dry ink in the print, re-flood and aggressively print again, this should clear the screen. If it does not clear the screen, spray a small amount of warm water into the stuck areas of the screen and wipe out with a rag. If you are leaving your screen for an extended period of time be sure to leave your screen flooded completely. If your ink begins to scale over, spray with water to rewet ink. Green Galaxy™ HSA Water Based Ink can be printed with other water based inks and with plastisol inks.

Flashing Instructions:

For flashing, forced air flash is optimal. Flash until dry to the touch.

Printing on an under base:

Green Galaxy™ HSA Water Based Ink colors can be printed on top of Green Galaxy™ Comet White, or discharge under base. Ensure that the under base is properly flashed so that it is dry before printing color on top. Perform wash test to ensure inner layer adhesion.

Curing Instructions:

Printed fabric should be cured for a minimum of 90 seconds at 360°F. Ideally, printed fabric should be cured for three minutes at 300-320°F.

Testing/Precautions:

After printing, perform a stretch test to ensure elasticity. It is always recommended to perform a wash test to ensure proper cure prior to going into production. You may also run abrasion testing to watch for flaking and test adhesion. Increase cure dwell time if testing fails.

Clean Up:

Ink should be removed from screen as soon as printing is completed. General wash-up (on ink that has not dried) can be done with water, though using Sgreen™ Aqua Wash is much easier and recommended. For aggressive or dried screens, use Sgreen™ Aqua Wash to dissolve ink and blast out areas of dried ink with water pressure.

Storage info:

Keep container(s) tightly closed. Store in cool, well-ventilated location that is locked.

General Safety Precautions:

Do not breathe vapors. Wear protective gloves. Do not eat, drink or smoke when using product. Wash hands thoroughly after handling. Dispose of this product in accordance with local, regional, national and international regulations as specified.
