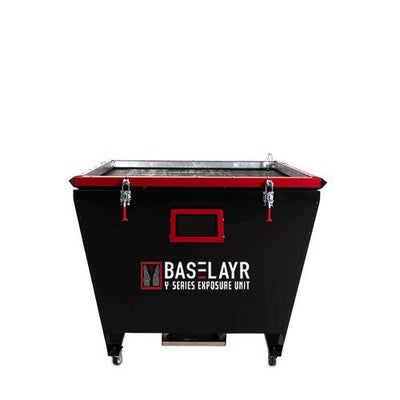

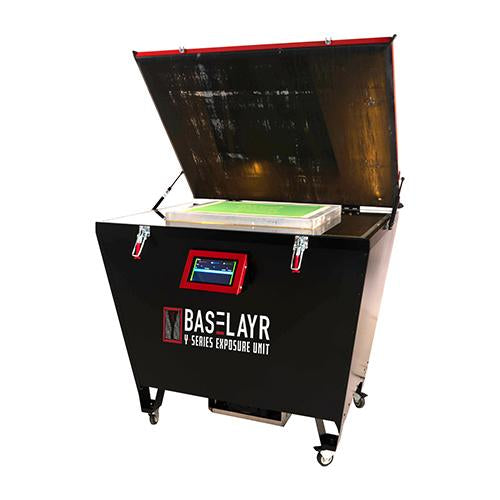

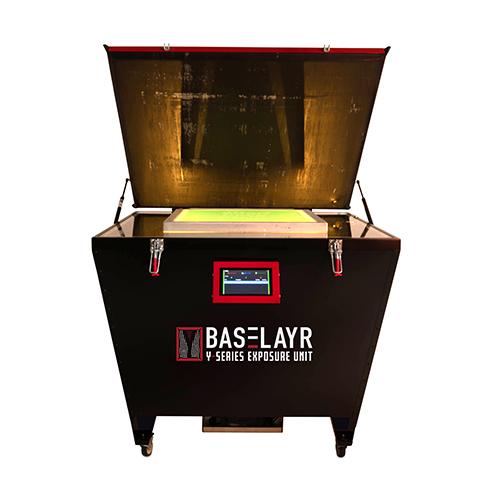

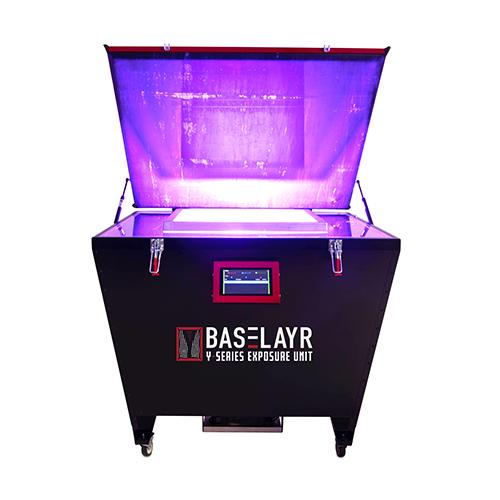

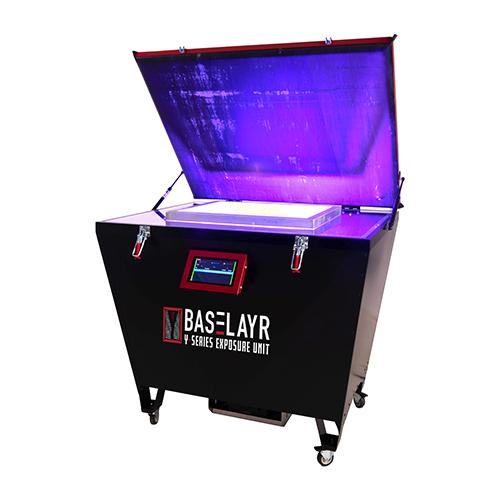

Baselayr Y3942 LED Exposure Unit - 39x42in

Original price $12,512.50 - Original price $12,512.50
Original price
$12,512.50
$12,512.50 - $12,512.50
Current price $12,512.50
SKU EUPO-Y3942

SLOW SHIP and EXTRA SHIPPING FEES. CALL FOR EXACT QUOTE.

At Green Galaxy, your satisfaction is our top priority. This item is currently not in our Canadian warehouse,  while our slow shipping service may take a little longer, around a 4-6 week timeline, please be assured that our dedicated team is working tirelessly to ensure a seamless delivery experience. From timely updates on your order status to expertly packaged shipments, we're here to make your shopping experience worthwhile. This product also has extra shipping charges because it requires special handling services to ensure they reach you in perfect condition and on time. To get an exact shipping price, please send us an email at info@greengalaxycompanies.com or call us at (416) 787-6099.

Description

BENEFITS:

  • Single point LED light source produces a powerful, concentrated light source that helps create the most optimal stencil
  • LED light sources exposes screens quickly; enhances the amount/levels of possible details captured; and creates a harder, more durable stencil
  • LED bulbs consume less energy and last more than 10,000 hours, so you don’t have to replace them as often

Whether you’re running a high production shop focusing on spot colors or printing complex, multicolor designs, you need an exposure unit that’ll give you excellent results. With a single point light source, LED bulb technology, and a vacuum, your designs become a reality. The Y-Series LED Exposure Units will quickly deliver consistent screens that capture the finest details every time (when screens are properly coated and dried).

With a single point light source, there are fewer angles of light that hit the film and emulsion. Less angles result in diminished light wrap around fine details.* The Y-Series maintain image integrity and resolution. A single point light source can hold the fine detail work needed for Sim Process and CMYK printing.

*Multipoint light sources like UV tubes will have more light scatter, making the finer details more difficult to properly resolve. UV light sources are the worst while LED tubes are far better.

Not only does the single point light source emit the most concentrated light, its bulb type enhances stencils as well. The Y3942 uses a custom, high output LED bulb (405 nm) manufactured for exposure units. The LED bulb outputs an optimal UV wavelength, which can be used on all types of emulsions. Printers can rest assured that the LED bulbs will last more than 10,000 hours, which is better for the printer and the environment.

Plus, the Y3942 has a reflective display, which triples the power of its nearly 450 watt light source. You can expose a 25”x36” screen with photopolymer emulsion in under 10 seconds.

The optically clear, tempered glass in the Y-Series allows more than 99% of the UV light through without disruption to the wavelength. All units feature two, light-safe T8 LED Amber inspection bulbs, doubling the use of the exposure unit as a screen inspection table. The Y-Series are designed to perform.

The vacuum lid creates the tightest positive contact between the glass, film, and emulsion. Having tight, strong contact to the point where the black ink on the film is almost embedded into the emulsion means that light has difficulty wrapping around the film. The end result — a straight, clean burn with sharp edges. Vacuum units provide a superior tool for creating detailed image resolution.

Everything starts and ends in the darkroom. Build a solid foundation from the screen up with the Y3942 today.

    FEATURES:

    • Single point 450 watt LED light source
    • 7" Touchscreen display
    • 2 SCFM high powered low decibel vacuum pump
    • Durable powder coated steel body construction
    • IEC removable power cord
    • Two, light-safe T8 LED amber inspection bulbs
    • Removable feet to allow easy access into doorways min. 31.5" (29.5" w/o LID)
    • One-year warranty (please refer to the manual for more details)
    • Made in the USA

    BENEFITS:

    • Single point LED light source produces a powerful, concentrated light source that helps create the most optimal stencil
    • Vacuum pump achieves positive contact in 20-30 seconds
    • Vacuum lid creates the tightest positive contact between the light source, glass, film, and emulsion that produces stencils with clean, sharp edges
    • LED light sources exposes screens rapidly compared to UV bulbs
    • LED enhances the amount/levels of possible details captured compared to UV bulbs
    • LED creates a harder, more durable stencil, providing better on-press longevity
    • Doubles as an inspection table and exposure unit
    • Low power consumption
    • LED bulbs last more than 10,000 hours, so you don’t have to replace them as often

    INCLUDED:

    • Pre Registration Clear Template
    • Eye Loupe 10X 1" Lens Magnifier for Optical Inspection
    • Step Wedge Exposure Calculator

    PRODUCT SPECS:

    • Unit Dimensions: 36.5"(W) x 43.5" (L) x 37" (H)
    • Optical Clear Tempered Glass: 40.25" x 32.75"
    • Max Exposure Area: 32" x 39"
    • Max Frame Size OD: 25x36
    • Light Safe Inspection Bulbs: 2 rows of Amber LEDs
    • Single Point Light Source: 405nm LED array designed for exposure units
    • UV Wattage: 450 watt
    • Voltage: 115v - 240v
    • Standard 110v 3-prong plug
    • Timer: Android® App, (M.S.mS)
    • Shipping Dimensions: 40" (W) x 45.25" (L) x 36" (H)
    • Ship Weight: 265 lbs

    PRODUCT DATA SHEET:

    Y-Series Manual
